Warranty 2 year
Gigabyte E163-Z34-AAH1 Rev. 3.x Edge Server – AMD EPYC™ 9005/9004 – 1U UP 2-Bay Gen5 NVMe/SATA/SAS-4 Titanium
- Single AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 2 x 2.5″ Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 1+1 1300W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NE163Z34DR000ACH1*
0 ر.س
Description
New AMD EPYC™ Family of Processors – Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
5th Generation AMD EPYC™ Processors for SP5 Socket
3nmarchitecture
Increased transistor density alongside a reduction in power consumption
Up to 192CPU cores
Dedicated “Zen 5” & “Zen 5c” cores increase compute density
Up to 512MBL3 cache
An L3 cache increase helps to reduce latency in data-intensive operations
12channels
Memory capacity up to 9TB in a 2 DIMM per channel configuration
Up to 160PCIe lanes
Dual socket configuration adds a significant amount of I/O connectivity
CXL 2.0support
Disaggregated compute architecture possible via Compute Express Link
E163-Z34-AAH1 Block Diagram

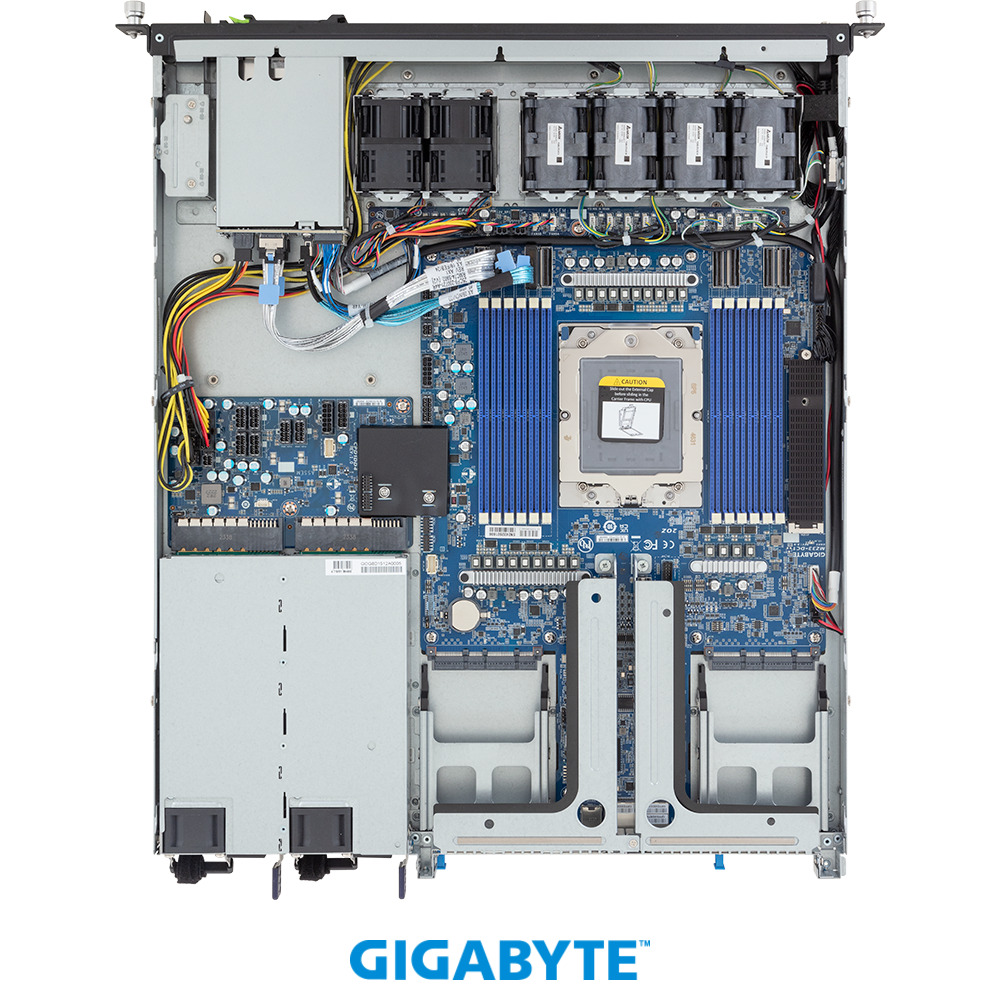

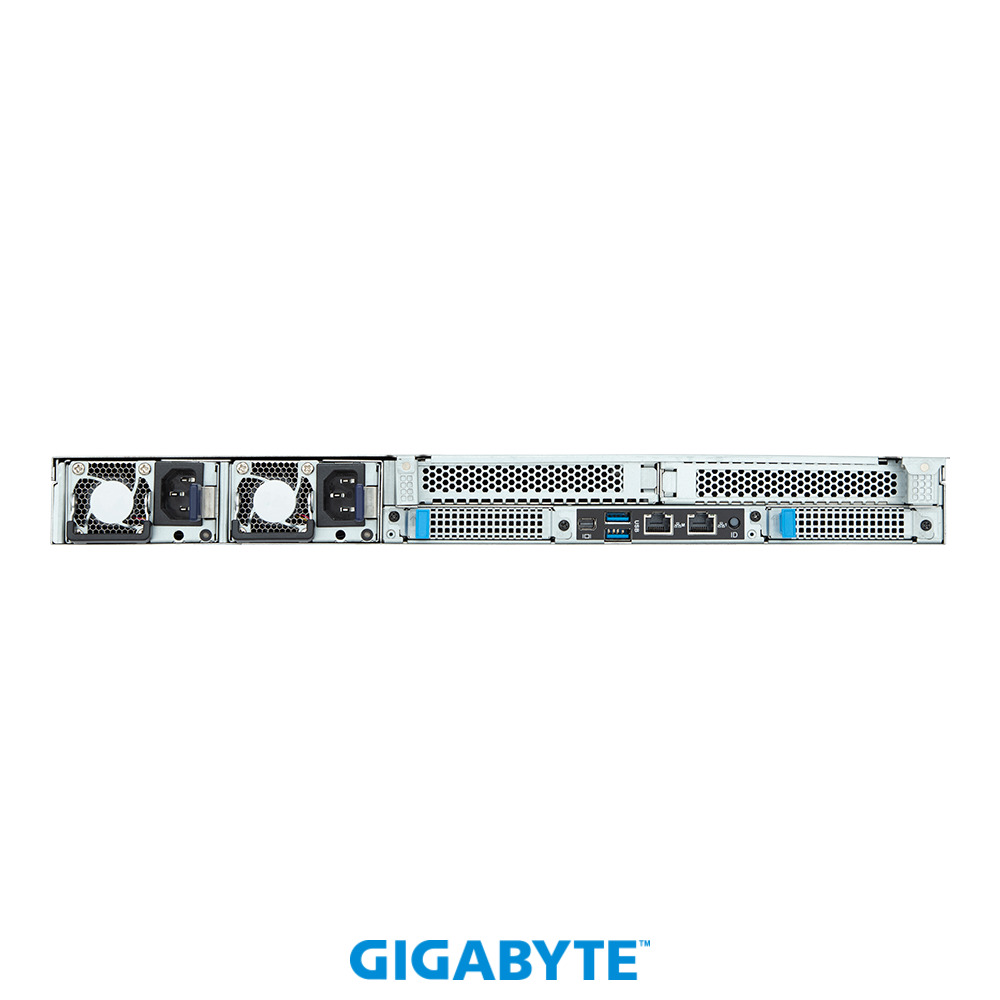

E163-Z34-AAH1 Product Overview
