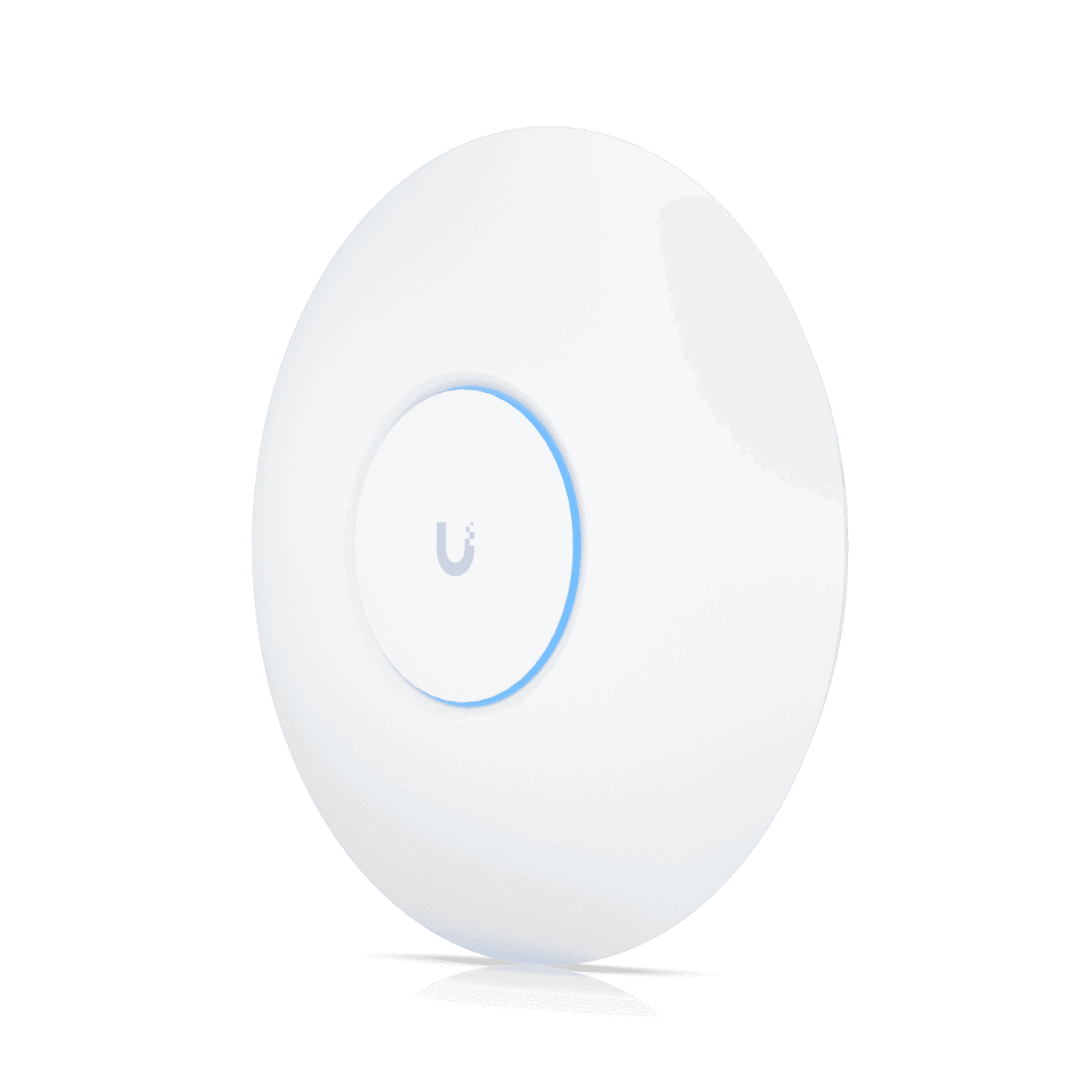

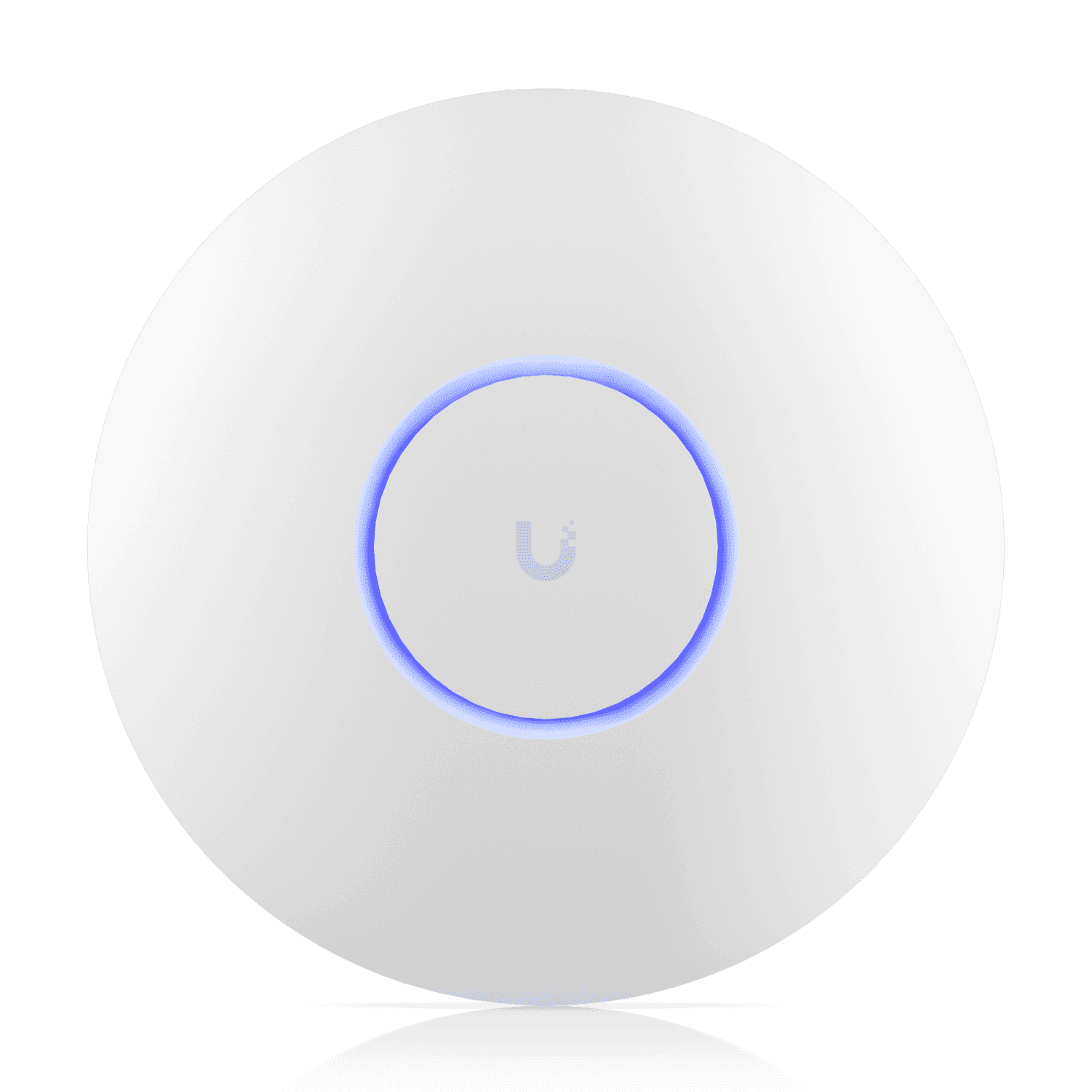

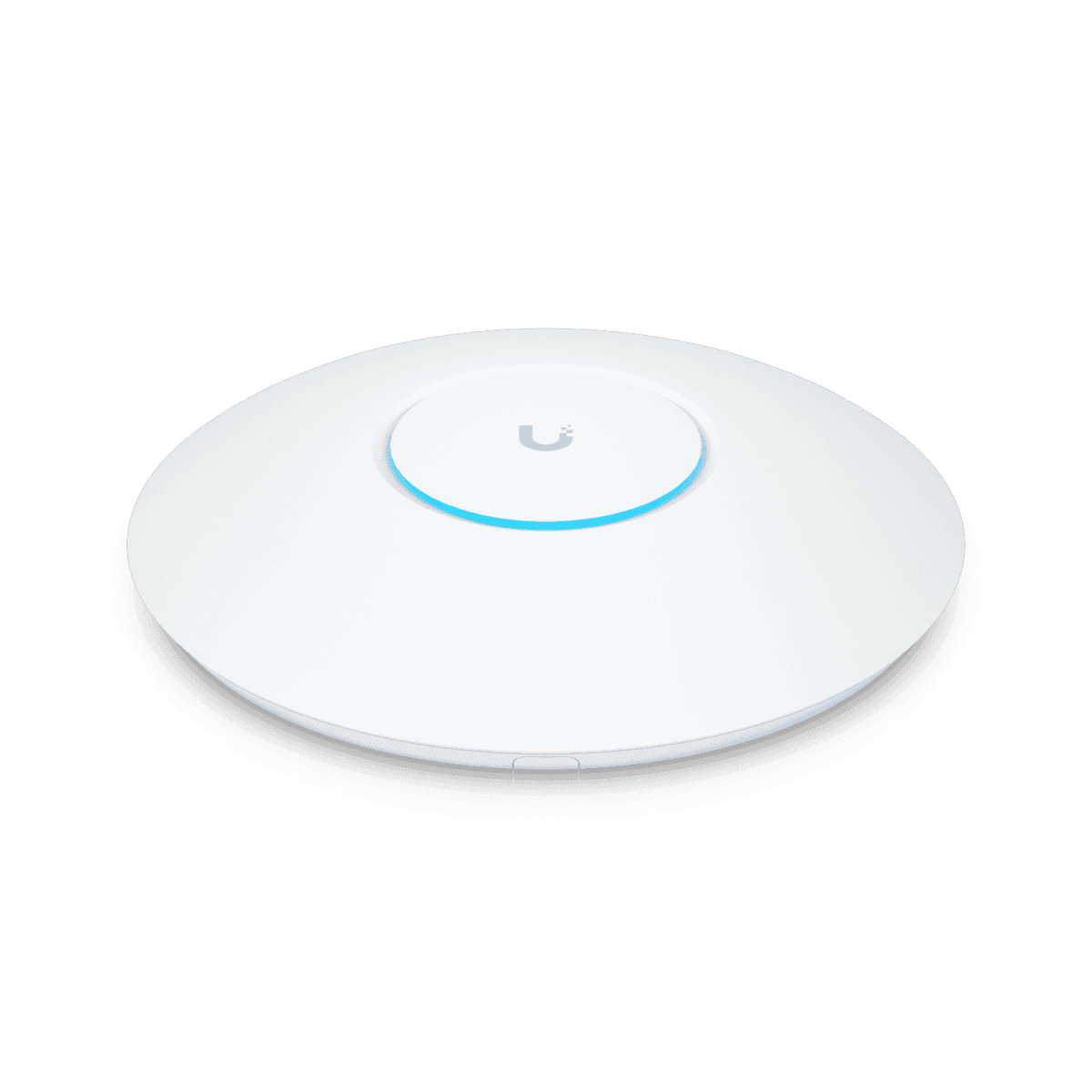

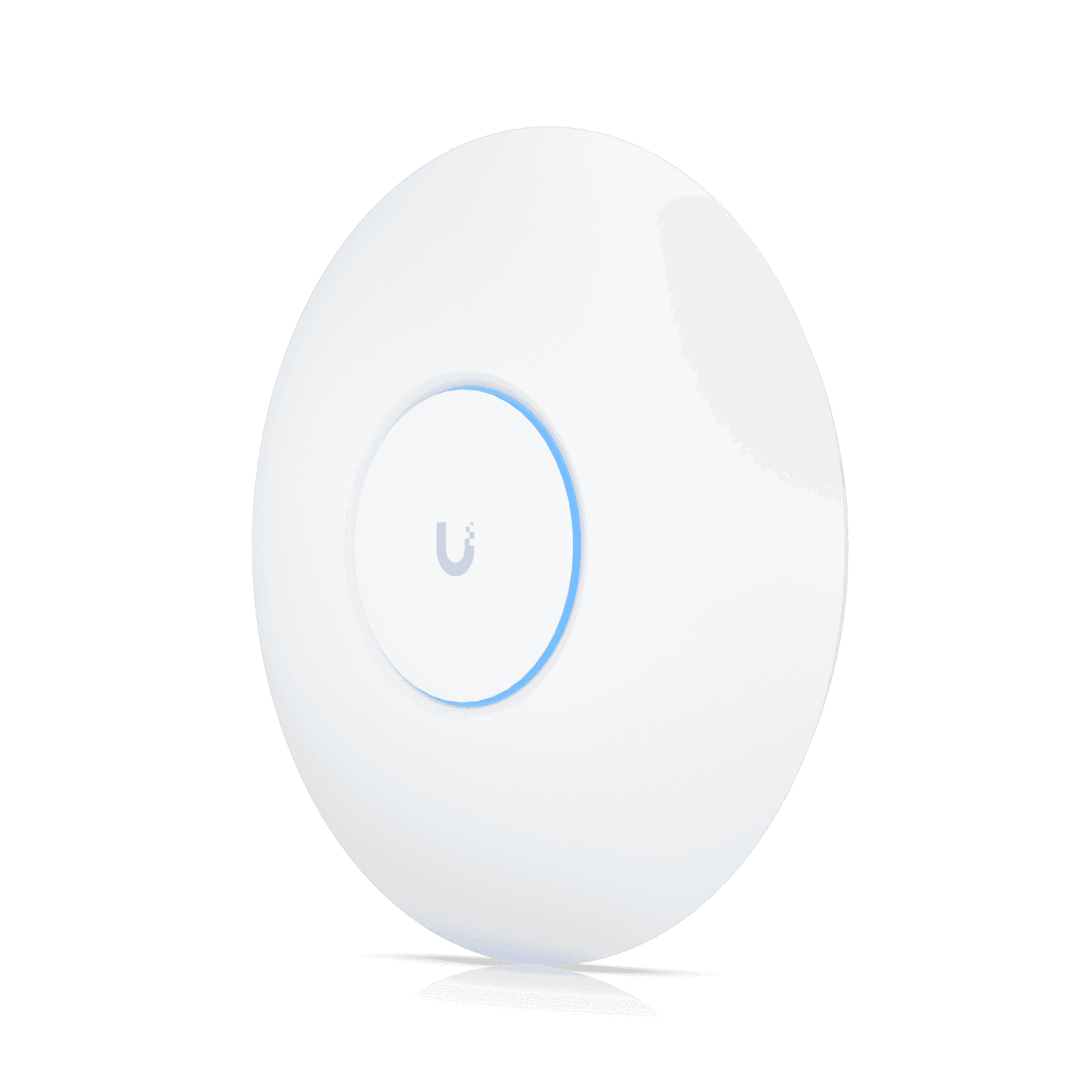

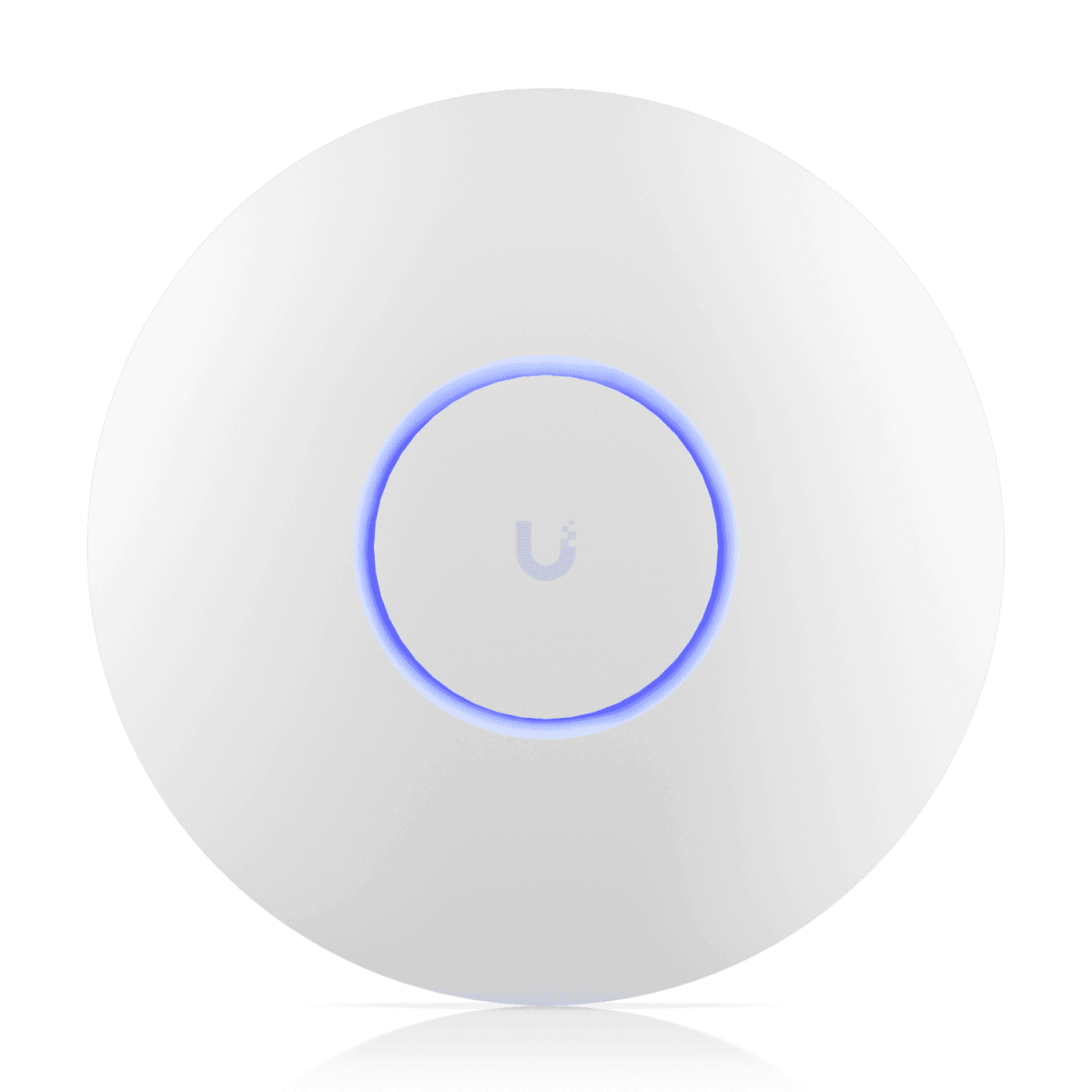

Ubiquiti U6 Pro Ceiling-mounted WiFi 6 AP with 6 spatial streams designed for large offices – U6-Pro
The UniFi Access Point WiFi 6 Pro (U6-Pro) is a high performance Dual-band WiFi 6 Access Point and is ideal for home and office use.
0 ر.س
Description
The UniFi Access Point WiFi 6 Pro (U6-Pro) is a high performance Dual-band WiFi 6 Access Point and is ideal for home and office use. U6-Proje capable of achieving great throughputs – in the 5GHz band (4×4 MU-MIMO) it is 4800Mb/s when used with 160MHz bandwidth and in 2.4GHz (2x2MIMO) it is 574Mb/s, which allows it to support more than 300 simultaneously connected clients. Thanks to its inconspicuous design, it fits into any environment, and due to the design with IP54 protection, it can be used partly outdoors in addition to indoor installations.
The Access Point has Gigabit Ethernet with support for active PoE (802.3at) as well as passive 44 to 57V PoE.
Key properties
- Dual-band WiFi 6, support 802.11a/b/g/n/ac/ax
- 5GHz bandwidth up to 4804Mb/s (4×4 MU-MIMO)
- 2.4GHz bandwidth up to 574Mb/s (2×2 MIMO)
- Antenna Gain – 2.4GHz (4dBi), 5GHz (6dBi)
- WPA/WPA2/WPA3 encryption
- Gigabit LAN port
- power supply via 802.3af or passive 44 to 57V PoE, consumption 13W
- Degree of protection IP54 (can be mounted indoors and partially outdoors)
- supported by UniFi Network application since version 6.1.56
- central unit control
Overview
Dimensions: Ø197 x 35 mm (Ø7.8 x 1.4″)
WiFi Standard: WiFi 6
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 350+
Uplink: GbE

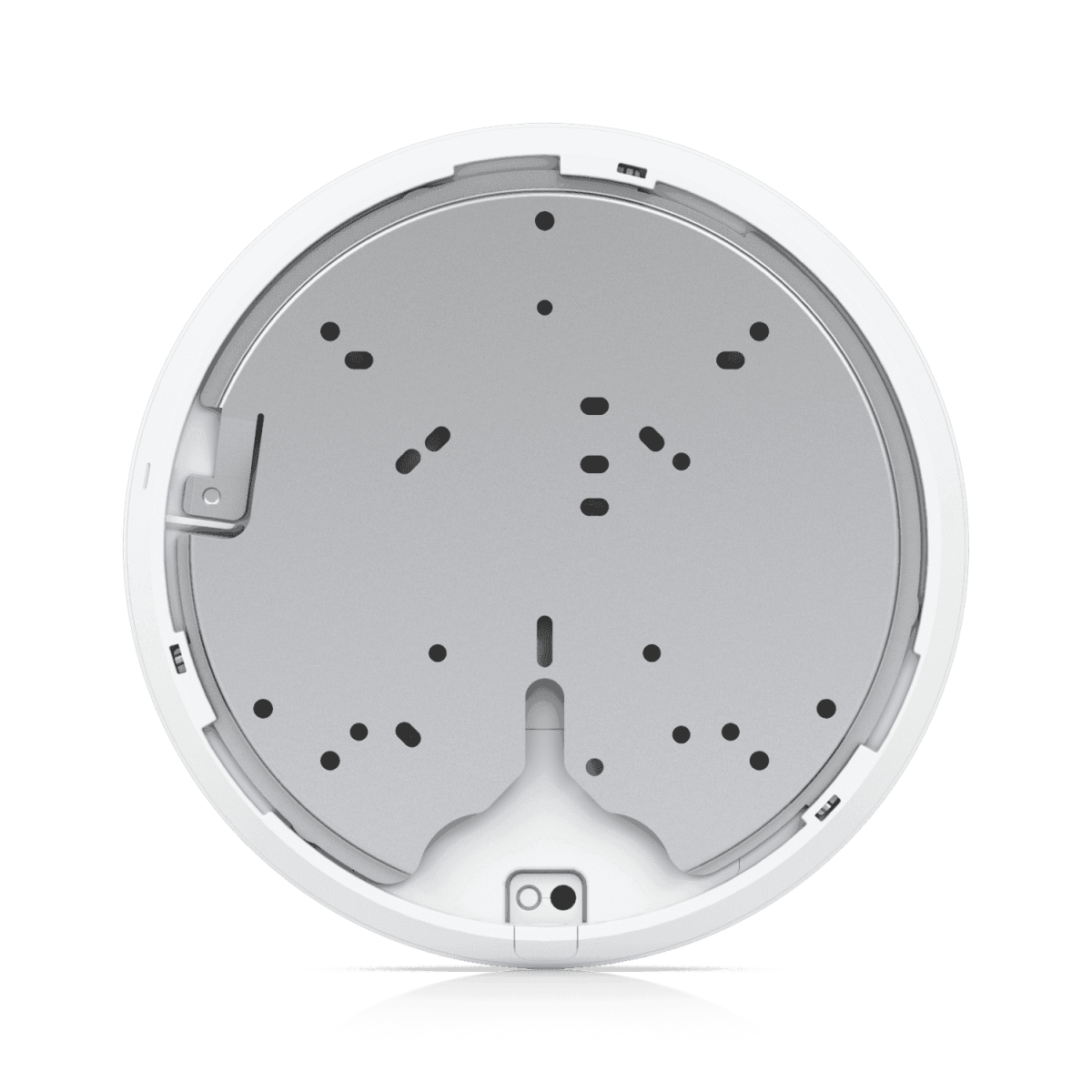

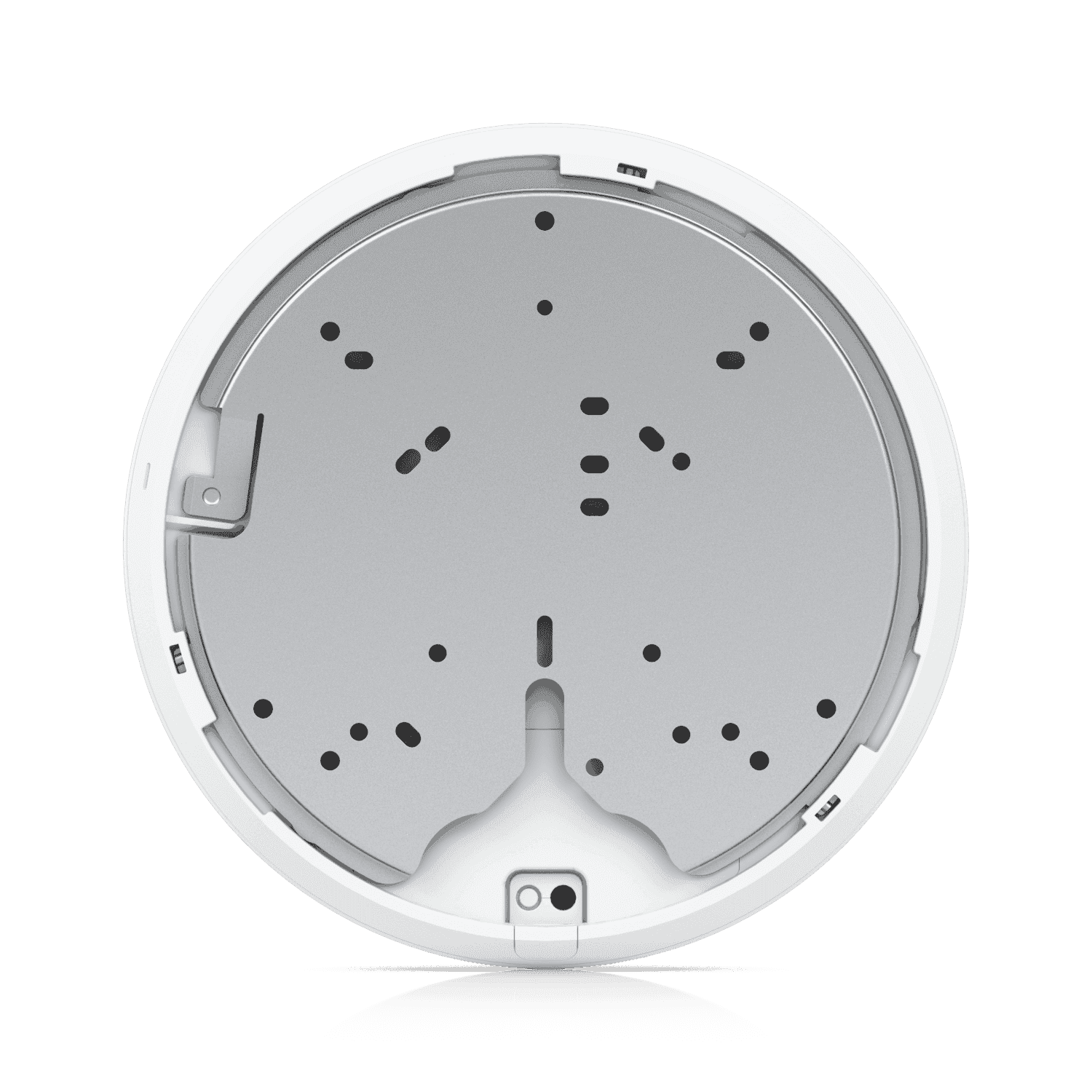

Mounting: Ceiling, Wall (Pro Mount Included)
Weatherproofing: IP54
Power Method: PoE
MIMO
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (UL MU-MIMO)
Max. Data Rate
5 GHz: 4.8 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Antenna Gain
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power
5 GHz: 26 dBm
2.4 GHz: 22 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
Wireless Meshing: ✓
Band Steering: ✓
802.11v BSS Transition Management: ✓
802.11r Fast Roaming: ✓
802.11k Radio Resource Management (RRM): ✓
Advanced Radio Management: ✓
Passpoint (Hotspot 2.0): ✓
Captive Hotspot Portal
Custom Branding Landing Page: ✓
Voucher Authentication: ✓
Payment-Based Authentication: ✓
External Portal Server Support: ✓
Password Authentication: ✓
Guest Network Isolation: ✓
Private Pre-Shared Key (PPSK): ✓
WiFi Speed Limiting: ✓
Client Device Isolation: ✓
WiFi Schedules: ✓
RADIUS over TLS (RadSec): ✓
Dynamic RADIUS-assigned VLAN: ✓
Hardware
Max. Power Consumption: 13W
Supported Voltage Range: 44—57V DC
Networking Interface: (1) GbE RJ45 port
Weight: Device: 580 g (1.3 lb) With mount: 720 g (1.6 lb)
Management: Ethernet Bluetooth
Enclosure Material: Polycarbonate
Mount Material: Stainless steel (SUS304)
LEDs
System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel, SRRC
Operating Frequency: US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Application Requirements
UniFi Network: Version 6.0.45 and later
