Ubiquiti Pro Max 48 PoE A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output – USW-Pro-Max-48-PoE (720W)
UniFi Pro Max 48 PoE 48-port Layer 3 Etherlighting™ switch with 2.5GbE and PoE++ outputs Etherlighting™ – backlit ports that indicate port location, speed/link and native VLAN/network backup power support Technical parameters Network interface
0 ر.س
Description
UniFi Pro Max 48 PoE 48-port Layer 3 Etherlighting™ switch with 2.5GbE and PoE++ outputs Etherlighting™ – backlit ports that indicate port location, speed/link and native VLAN/network backup power support Technical parameters Network interface
Overview
Dimensions: 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″)

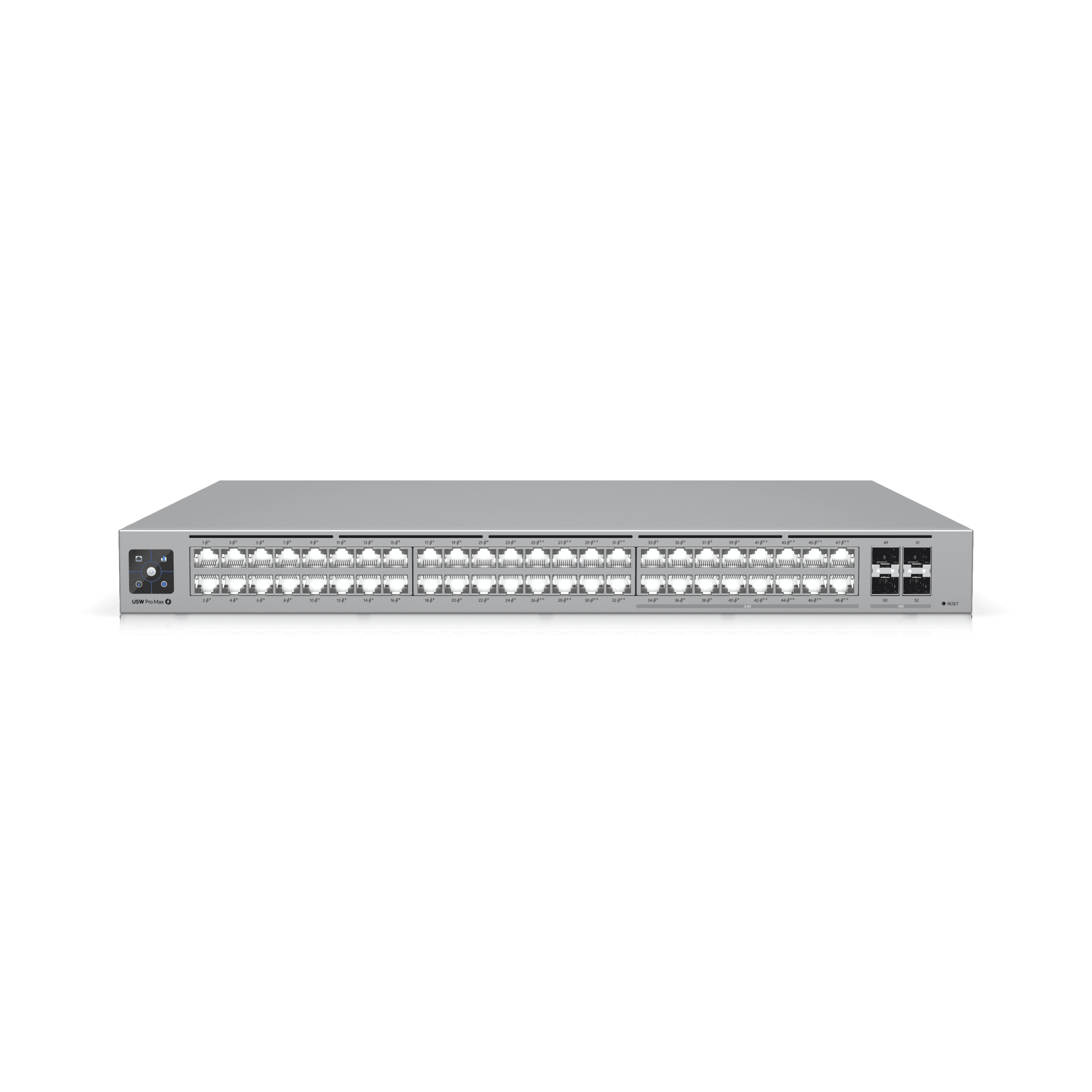

Port Layout:
1 GbE RJ45: 32 (24 PoE+; 8 PoE++) (1G/100M/10M)
2.5 GbE RJ45: 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M)
10G SFP+: 4 (10G/1G)
Max. PoE Output: Up to PoE++
Total PoE Availability: 720W
Redundancy: DC Power Backup
Layer 3: ✓
Form Factor: Rack mount (1U)
Etherlighting™: ✓
Performance
Switching Capacity: 224 Gbps
Total Non-Blocking Throughput: 112 Gbps
Forwarding Rate: 167 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size
ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size: 2 MB
Access Lists
IPv4: 128
MAC: 128
Layer 3 Features
DHCP Server (Local Networks): ✓
DHCP Relay: ✓
Inter-VLAN Routing (Local Networks): ✓
Static Routing (Local Networks): ✓
Layer 2 Features
LACP Port Aggregation: ✓
STP & RSTP: ✓
QoS (DSCP): ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs & Device Isolation: ✓
DHCP Snooping & Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs & Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓
Hardware
PoE Ports
PoE+: 32
PoE++: 16
Max. PoE Wattage per Port by PSE
PoE: 15.4W
PoE+: 32W
PoE++: 64W
Max. Power Consumption: 100W (Excluding PoE Output) , 820W (Including PoE Output)
Power Method: (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 870W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Heat Dissipation (Excluding PoE Output): 341.2 BTU/hr
Weight: Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2″)
LCM Display: 1.3″ touchscreen
ESD Protection: Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™
Ethernet: ✓
SFP+: ✓
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network: Version 8.0.24 and later
