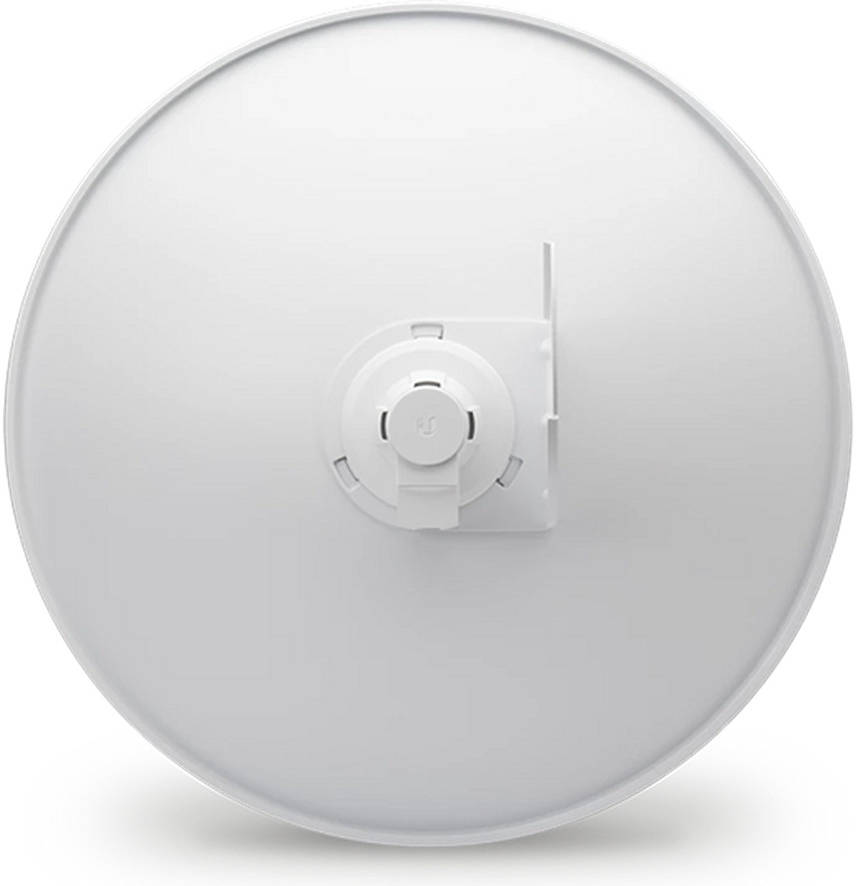

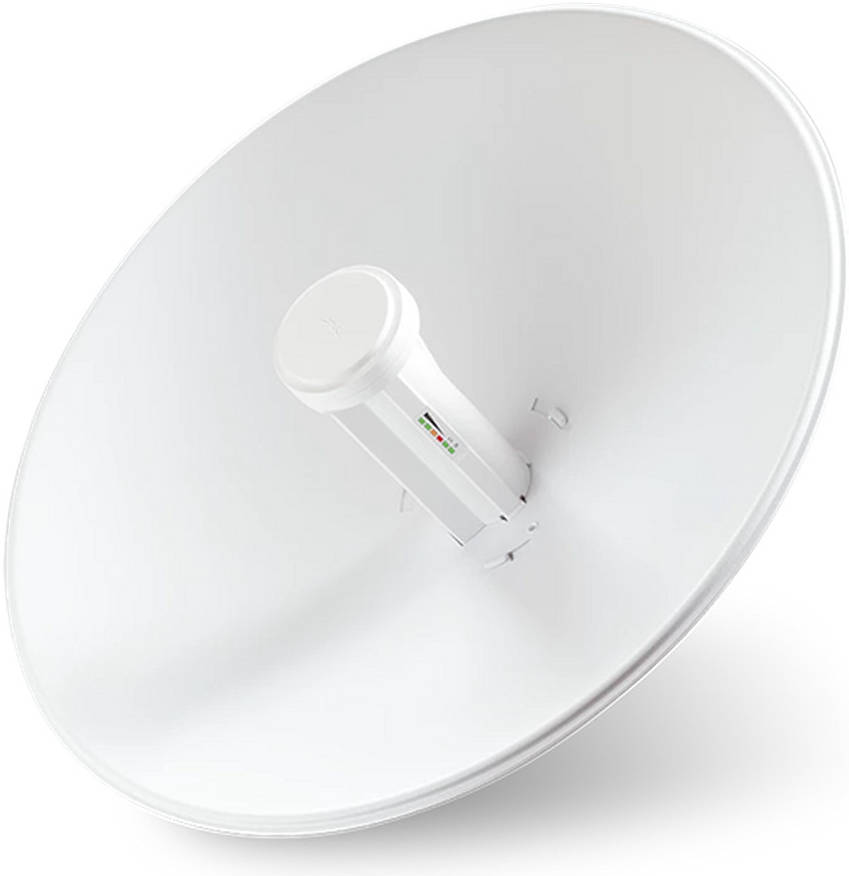

Ubiquiti airMAX PowerBeam M5 400 5 GHz, 25 dBi bridge with 150+ Mbps throughput – PBE-M5-400
With an all-in-one design, the PBE-M5-400 PowerBeam airMAX Bridge from Ubiquiti Networks is an airMAX product meant to function as customer premises equipment (CPE). With a more concentrated, direct signal clients benefit from improved noise immunity to as this bridge is capable of filtering out much of the noise that can degrade the signal. With Ubiquiti’s own inner feed design installation of the PowerBeam airMAX Bridge has been greatly simplified as there is no longer a need for any cabling. Once installed the included airMAX technology helps network administrators to manage and monitor the network. From intelligent QoS to scalability Ubiquiti has provided the tools necessary to create long range networks offering reliable wireless network access to a large number of clients.
0 ر.س
Description
Noise Immunity
The PowerBeam directs RF energy in a tight beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, to improve noise immunity. This feature works in areas crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam is versatile and cost-effective to deploy. The antenna feed has a thin gray ring around the center of the cap.
airMAX Technology Included
Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. With intelligent QoS, priority is given to voice/video for seamless streaming and is capable of high-speed, carrier-class links.
Technical
airOS
airOS is a highly developed, user-friendly Ubiquiti firmware technology. The firmware architecture enables high-performance and outdoor multi-point networking. It features protocol support, Ubiquiti channelization, spectral width adjustment, ACK auto-timing, AAP technology, and multi-language support.
airView
Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality. Waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference. With Waterfall you can aggregate energy over time for each frequency, Waveform aggregate energy collected, with real-time energy shown as a function of frequency, and you can also automate airView to record and report results with recording.
airControl
airControl is a powerful and intuitive, Web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices. It features network map, monitor device status, mass firmware upgrade, Web UI access, manage groups of devices, and task scheduling.
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 275 mm (16.5 x 16.5 x 10.8″) |
| Weight | 1.8 kg (4.8 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 342.5 N @ 200 km/h (77 lbf @ 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 8W |
| Max. TX power | 26 dBm |
| Gain | 25 dBi |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| System | |
| Gain | 22 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5170 – 5875 MHz |
| US/CA | 5725 – 5850 MHz |
