Gigabyte R283-Z92- AAJ1 Rack Server – AMD EPYC™ 9004 – 2U DP 24+4-Bay Gen4 NVMe/SATA/SAS (24 x NVMe) Titanium

SKU: R283-Z92- AAJ1
  • Dual AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 2.5″ Gen4 NVMe/SATA/SAS hot-swap bays
  • 12 x 2.5″ Gen4 NVMe hot-swap bays
  • 4 x 2.5″ SATA/SAS hot-swap bays on the rear side
  • 2 x FHHL PCIe Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 2000W 80 PLUS Titanium redundant power supplies

0 ر.س

  • Warranty 2 year

Description

Powering the Next Generation of Server Architecture and Energy Efficiency

The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

R283-Z92-AAJ1 Product Overview

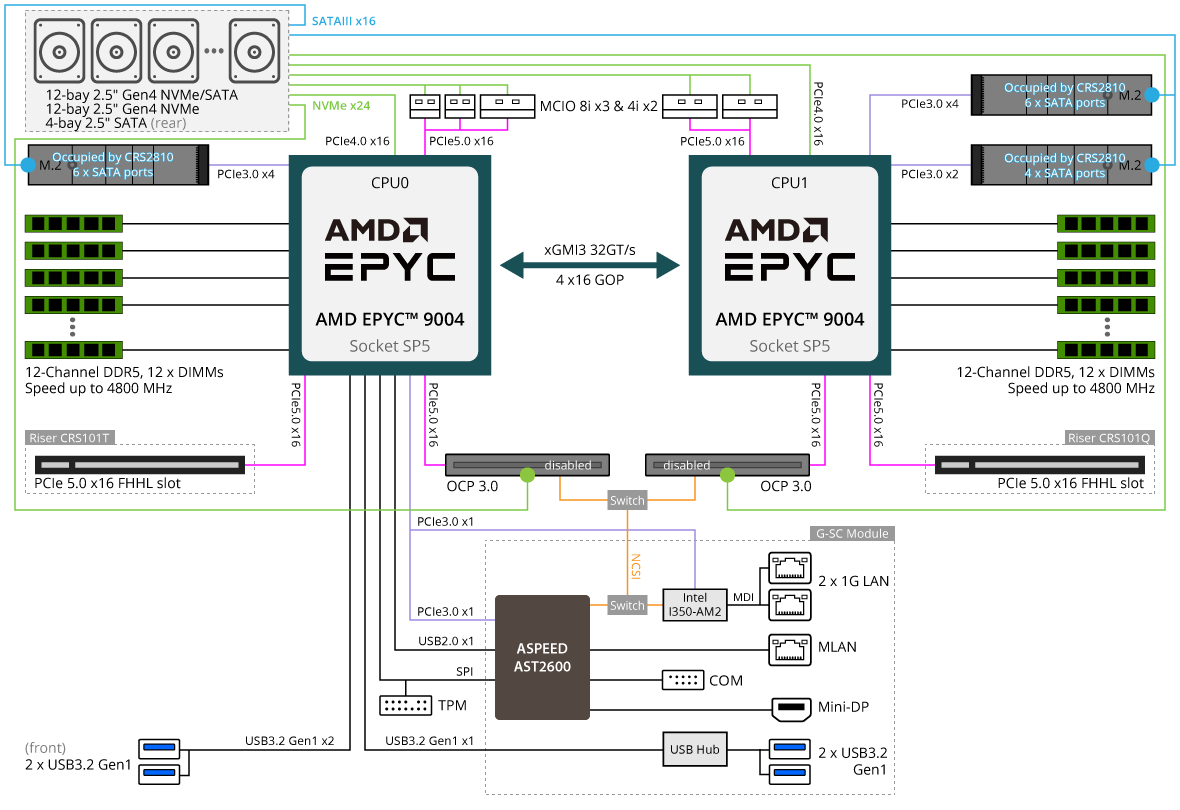

R283-Z92-AAJ1 Block Diagram
